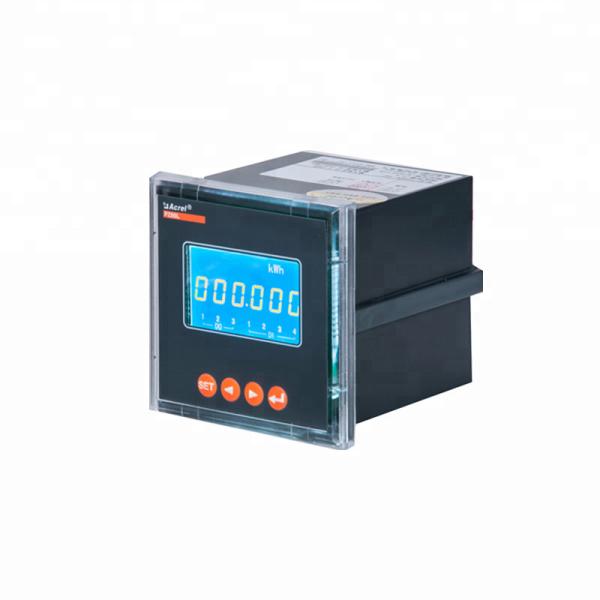

75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE

Name: 7575mm Digital 220v DC Energy Meter For Solar Panels PZ72LDE
Brand: ACREL
Price: 91.00 USD

75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE Manufactures

Place of Origin : Jiangsu, China

Brand Name : ACREL

Model Number : PZ72L-DE

MOQ : 2 Pieces (2 lot)

Price : $91.00 / Piece

Display Type : Digital Only

Phase : Single Phase, single phase

Measuring Energy Range : 0-9999

Accuracy Class : 0.5, 0.5

Output Voltage : 220v

Operating Temperature : -10℃-45℃

Dimensions : 75*75mm

Product name : digital multi-function dc solar energy meters

Display : LCD

Frequency : 45~65Hz

Input current : AC 1A or 5A

Power range : AC85-270V/DC110-350V and so on

Communication : RS485

Power consumption : ≤2VA

Warranty : 2 years

Selling Units : Single item

Single package size : 17X18X16 cm

Single gross weight : 0.400 kg

Package Type : Paper carton product packed with air bubble film

Contact Now

Product Description

ACREL PZ72L-DE DC power energy monitor / kwh meter for telecom base / solar panels

DC multifunction energy meter power analyzer power meter with RS485 modbus 0.5 class PZ72L-DE is
designed for application in DC cabinet,solar power supply and telecom station. It can measure voltage,current of DC system.It can be used for local display and connected with the control equipment to regroup measuring and controlling system.
It can be equipped with RS 485 communication under Modbus-RTU protocol;it has options of analog output,relay alarm and switch state.

Functions and parameters

• Measuring dc voltage,current,power,reverse and forward energy

• Max voltage input 1000v,current input by connecting shunt 75mv or hall effect current sensor(0-5v);

•Optional function:

1.RS485-Modbus(C)

2.2DI/DO(K)

3.±12v power can be connected to hall current sensor(V)

4.Multi tariff energy caculating(F) historical data

5.Accuracy:class 0.5

Parameters-PZ72L-DE LCD display dc power energy monitor meter ACREL
Input	DC voltage input			dc 0-1000v
		DC current input	Input range	0-10a(direct input,start current:5ma
						0-9999A(external with 75mv shunt or 5v hall effect current sensor
				shunt	75mv output
		Overload	1.2 times sustainable work, 2times lasts a second
Accuracy			class 0.5
power supply	Auxiliary power	AC85-265V,50/60HZ,DC110-350V,DC36-48V,DC18-30V and so on
		Power consumption	≤2VA
Communication protocol			Modbus-RTU RS485
Dimensions	Panel size	75*75mm
		Cut out	67*67mm
		Depth	98mm

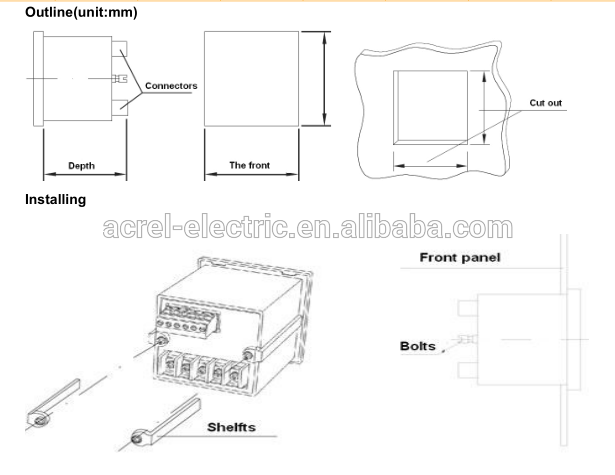

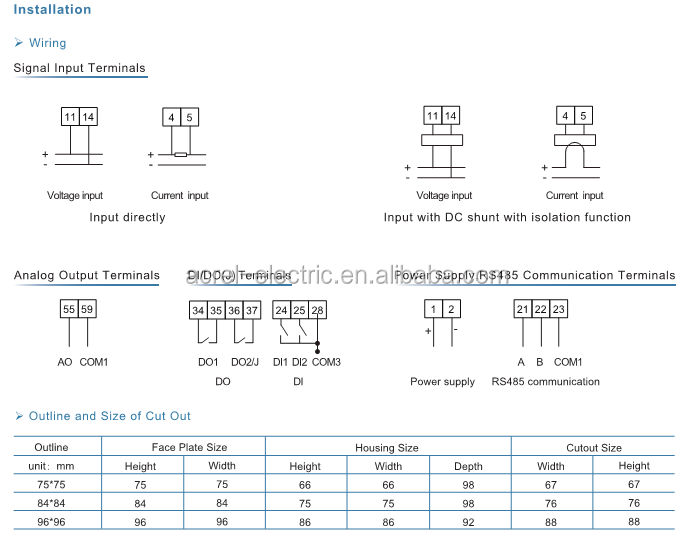

Dimensions and wirings

75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE

please note for dc power meter,we can only do 75x75mm outline size and for ac power meter,3 sizes are available,for modbus address table or manual pls mail me or online contact skype:sherryxiaoxiao1 or what'sapp /wechat:+8615921826295

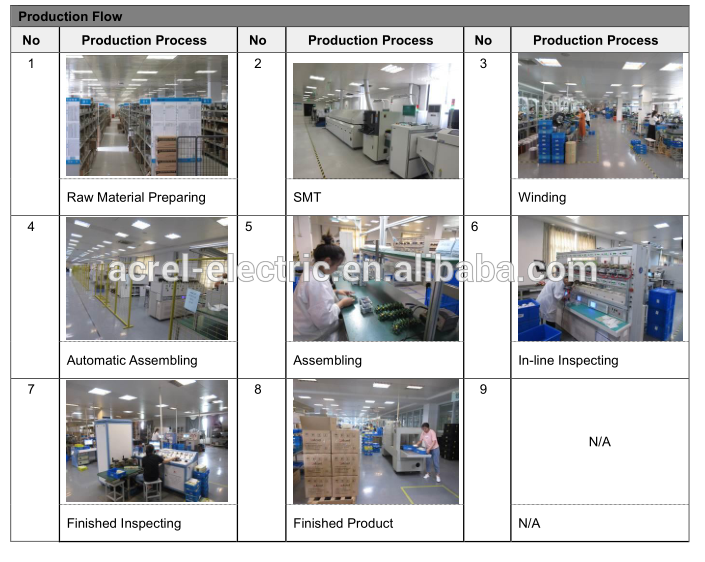

Production Process

Payment and delivery

1. Payment:100% TT in advance,credit card and western union. For large amount, we can accept terms T/T 30% in advance as deposit and balance 70% before delivery.

2. Delivery:in 3-10 working days after payment received.

3. Delivery ways:By sea,air,train or international courier like Fedex,TNT,DHL and so on.

Project Performance

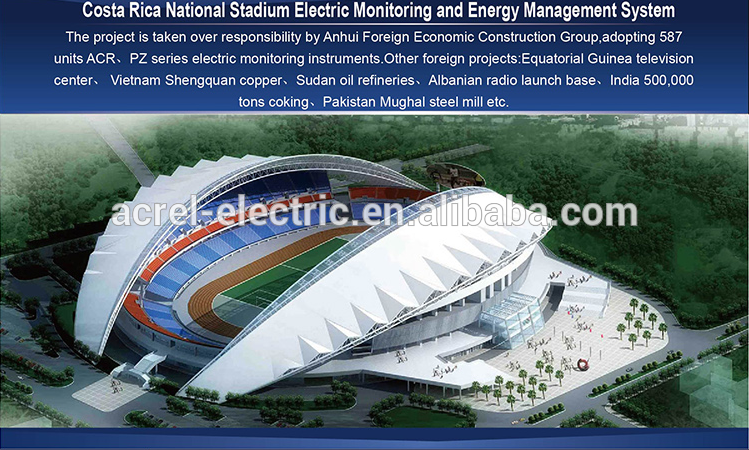

Costa Rica national stadium electric monitoring and energy management system

The project is taken over by Anhui Foreign Economic Construction Group,adopting over 500 hundred PZ power meters.

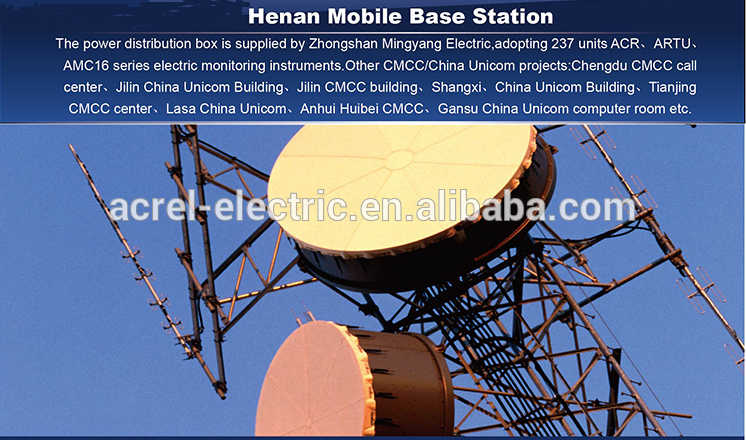

Power monitor energy meter used in telecom base station
