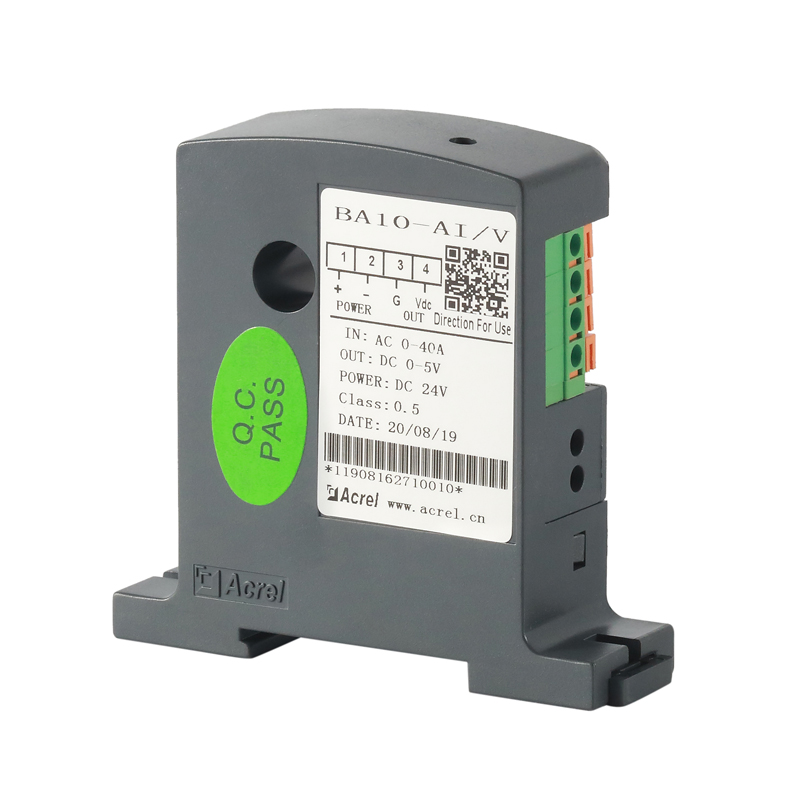

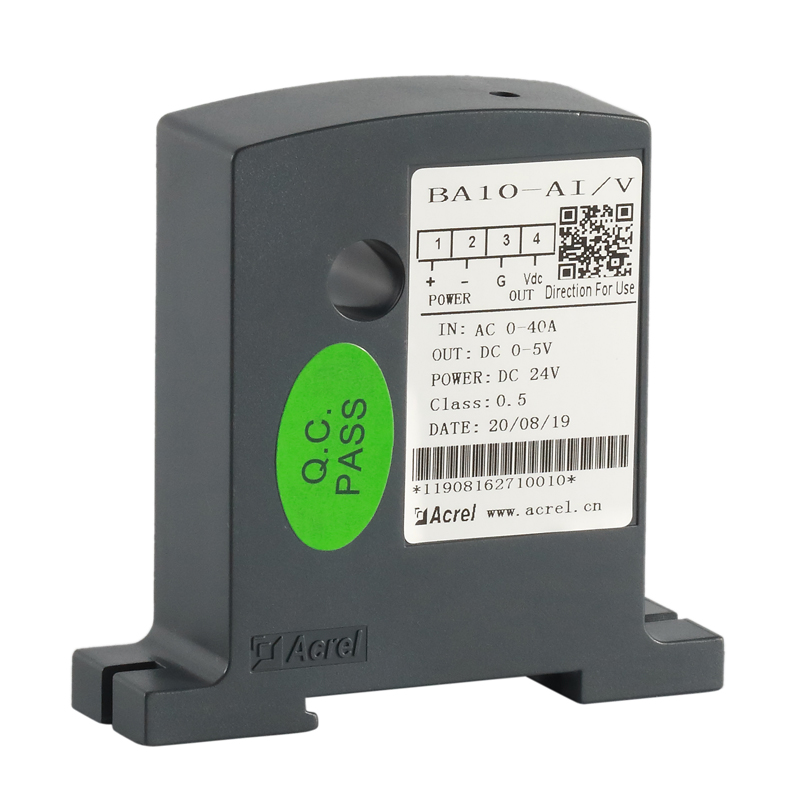

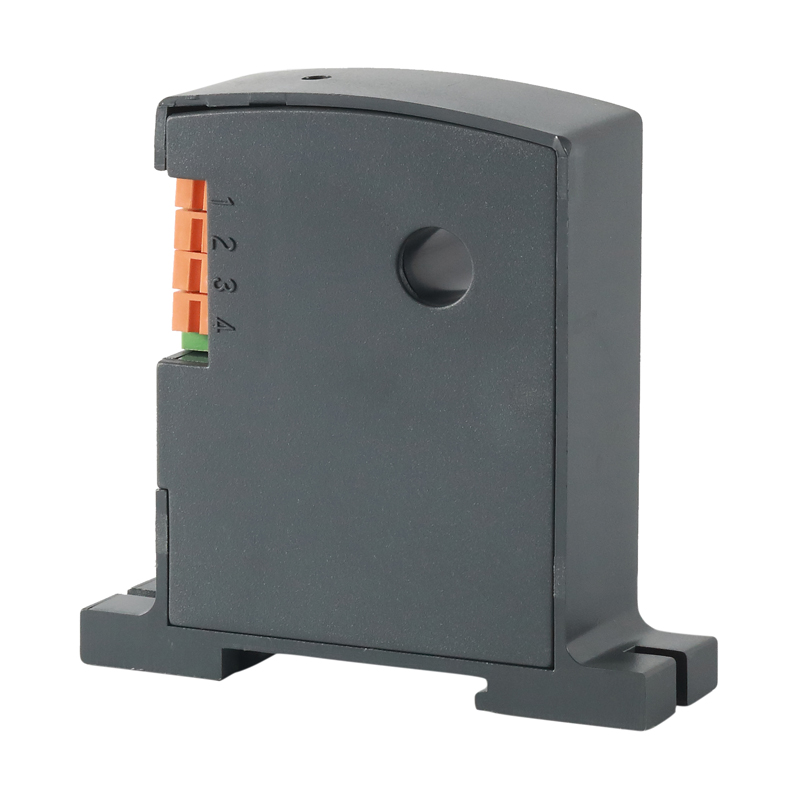

BA10-AI/V Current Transducer

Name: BA10AIV Current Transducer
Brand: Acrel
Price: 35.00 USD

BA10-AI/V Current Transducer Manufactures

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : BA10-AI/V

Certification : ISO CE

MOQ : 1 Piece

Price : $35.00 / Piece

Usage : Power

Phase : Single

Coil Structure : TOROIDAL

Coil Number : AUTOTRANSFORMER

Product name : BA10-AI/V Current Transducer

Accuracy Class : 0.5%

Response time : ≤350ms

Installation : Din rail 35mm

Consumption : ≤1W

Input current : AC 0-50A

Through-Hole size : Diameter 10mm

Operation Temperature : -10~55℃

Standard : GB/T13850

Selling Units : Single item

Single package size : 7.6X7.4X2.25 cm

Single gross weight : 0.400 kg

Package Type : It is packed in a crash bag and then put into a cardboard box.If packaging has special requirements, can communicate with customer service personnel, customized

Contact Now

BA10-AI/V Current Transducer

Measurement
- Direct AC current measurement up to 600A
- Overload: 1.2 times of rated value Application
- Industrial automation

Appearance

Technical Parameters

^{Auxiliary Power}			DC12V
				DC24V
Consumption			≤1W
Through-hole size			φ10mm
Input	Current	AC0~(8~50)A
Output	Nominal value	DC4-20mA,or0-20mA,0-5V,0-10V,etc
		Load resistance	Current output≤500Ω,Voltage output≥1kΩ
Accuracy Class			0.5%
Response time			≤350ms
Temperature			Operation:-10 to+55℃ Storage:-25 to 70℃
Temperature coefficient			≤200ppm/℃
Installation			(Rail)Din 35,fix on cubicle with screws
Standards			GB/T13850
