Acrel ASCB1 Series Intelligent Micro Circuit Breakers Low-voltage Terminal Distribution Network With Intelligent Gateway

Name: Acrel ASCB1 Series Intelligent Micro Circuit Breakers Lowvoltage Terminal Distribution Network With Intelligent Gateway
Brand: Acrel
Price: 1 USD

Brand Name : Acrel

Model Number : ASCB1-63-C16-1P

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T

Supply Ability : 5000pc/day

Delivery Time : 5-8 work days

Packaging Details : carton

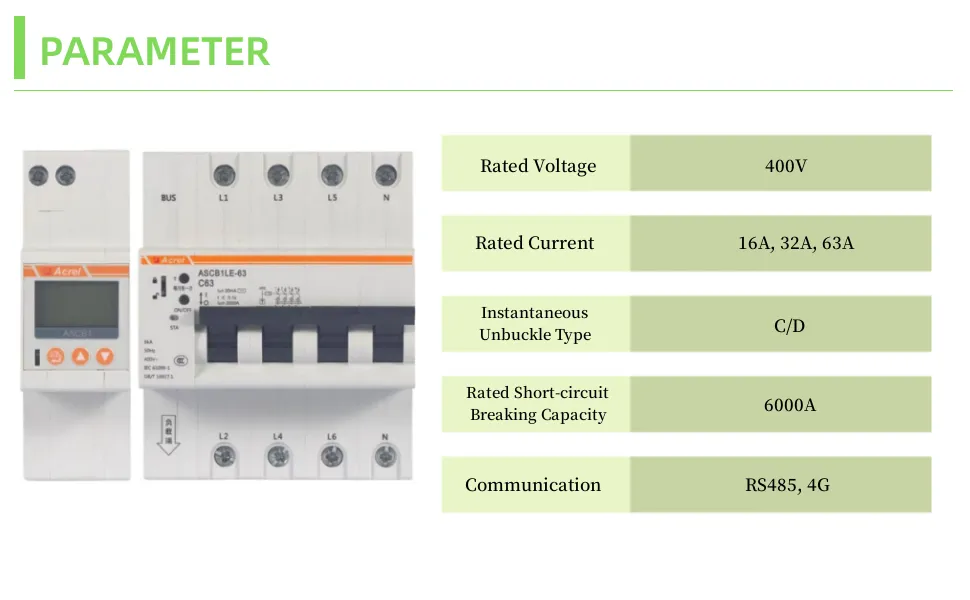

Grade of Shell : 63A

Rated Short-circuit Breaking Capacity : 6000A

Rated Voltage : 230V

Rated Current : 16A

Levels of Protection : IP20

Contact Now

ASCB1 Series intelligent miniature circuit breaker

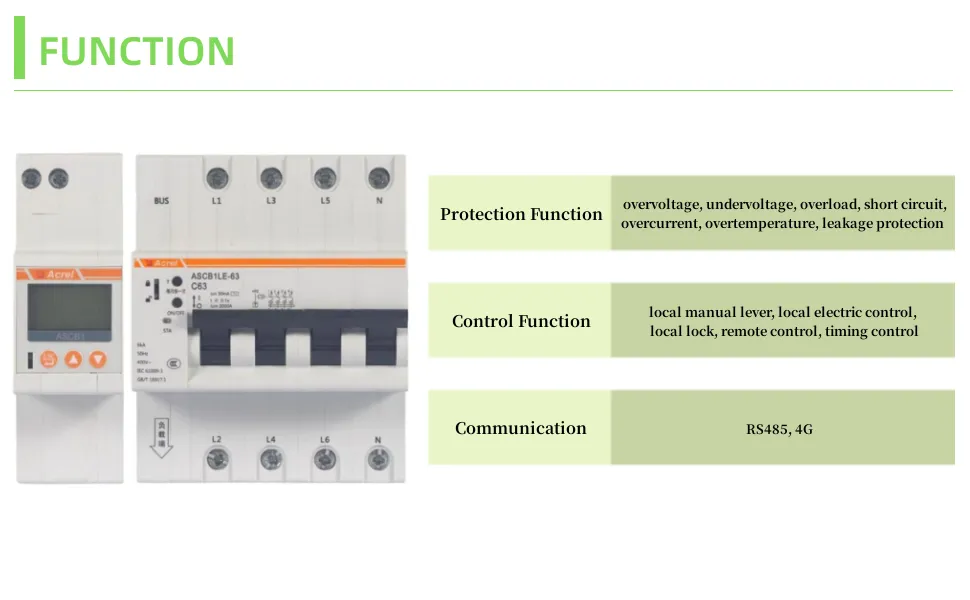

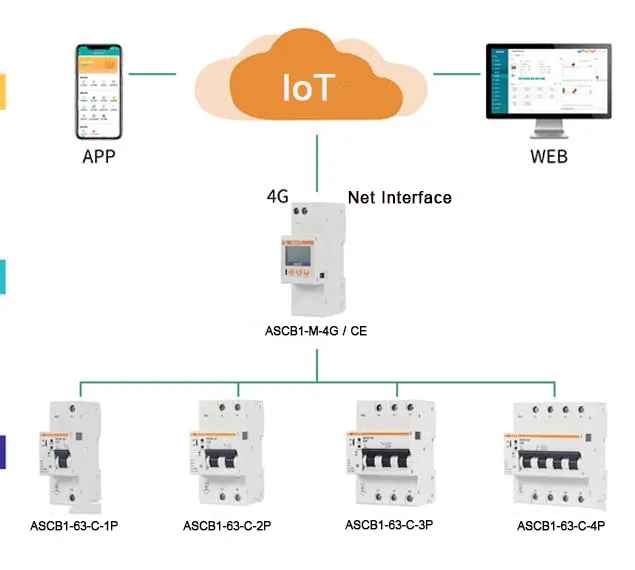

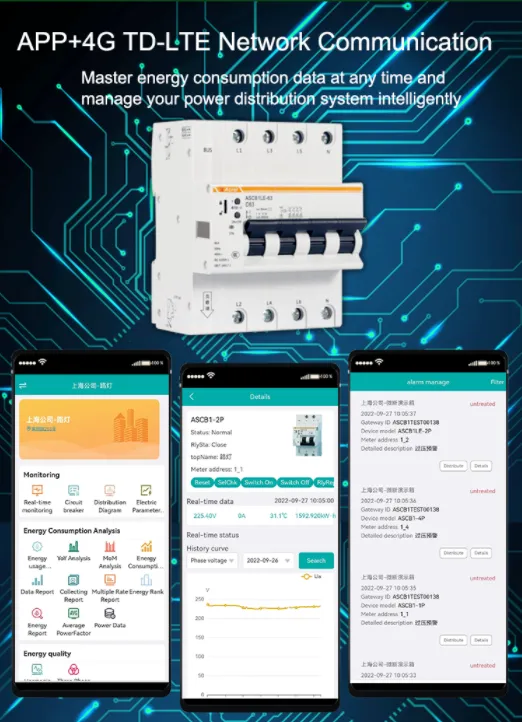

ASCB1 series intelligent micro circuit breakers (hereinafter referred to as intelligent micro circuit breakers) are applied to low-voltage terminal distribution networks in industrial, commercial, civil buildings and infrastructure fields in residential buildings and similar places. The intelligent micro circuit breaker is used with the intelligent gateway to conduct real-time monitoring of the key electrical parameters of the power line, such as voltage, current, power, temperature, leakage, energy consumption, etc., and has remote control, abnormal warning, accident trip warning alarm, electric energy metering statistics, fault positioning and other functions.

This series of products can be selected from unipole, 2 pole, 3 pole, 4 pole.
