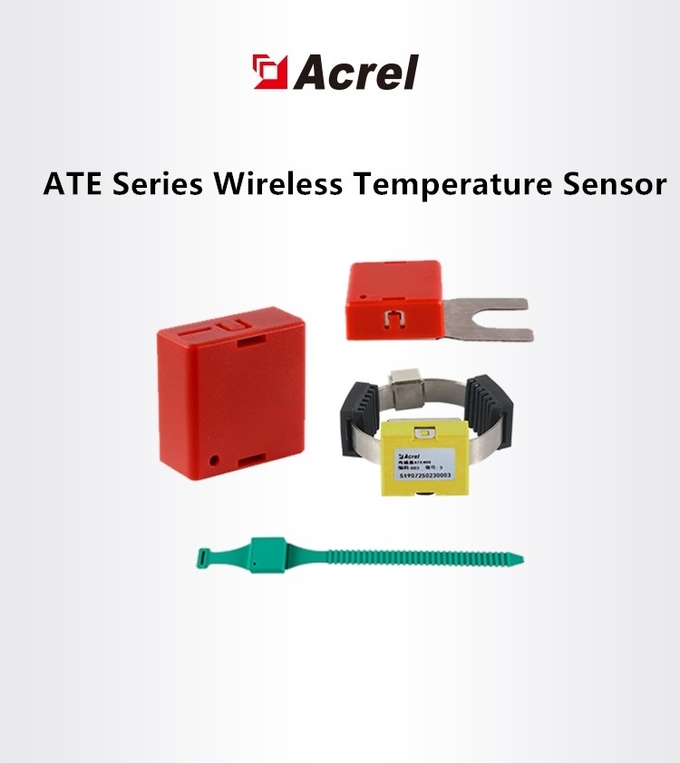

ATE Series Wireless Temperature Sensor
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.
Technical Features
| Items | Features |
| Environment | Temperature | -40℃~85℃ |
| Humidity | ≤95% |
| atmospheric pressure | 86kPa~106kPa |
| ATE100M/100/200 Active wireless temperature sensor | Wireless frequency | 470MHz,433Mhz |
| Communication distance | 150m(470Mhz) ,50m(433Mhz)in open area |
| Sampling frequency | 25s |
| Transmitting frequency | 25s-5min adaptive |
| Power source | Battery |
| Installation | Magnetic / bolted /Belt |
| Range of temperature | -50℃~+125℃ |
| Precision | ±1℃ |
| Application | Joints in high or low voltage switchgears |
| Battery life | ≥5 years(25℃) |
| 400 Passive wireless temperature sensor | Wireless frequency | 470MHz,433Mhz |
| Communication distance | 150m(470Mhz) ,50m(433Mhz)in open area |
| Sampling frequency | 15s |
| Transmission frequency | 15s |
| Power source | CT-powered, starting current≥5A Max current≤5000A |
| Installation | alloy chip fixing |
| Sensor probe | alloy bottom |
| Range of temperature | -50℃~125℃ |
| Precision | ±1℃ |
| Application | Joints in high or low voltage switchgears |
| ATE100P/200P Wireless temperature sensor | Wireless frequency | 470MHz,433Mhz |
| Communication distance | 150m(470Mhz) ,50m(433Mhz)in open area |
| Sampling frequency | 25s |
| Transmitting frequency | 25s-5min adaptive |
| Power source | Battery |
| Installation | bolted /Belt |
| Range of temperature | -50℃~+150℃ |
| Precision | ±0.5℃ |
| Application | Voltage switchgears |
| Battery life | ≥5 years(25℃) |
| Protection level | IP68 |
| ATE300M multi Loop temperature sensor | Wireless frequency | 433-510MHz |
| Communication distance | 1000m in open area |
| Sampling frequency | 1-240s |
| Power source | AC/DC 85~265V |
| Installation | Rail type/Tie type |
| Range of temperature | -40℃~+140℃ |
| Precision | ±1℃ |
| Application | Joints in low voltage switchgears |
| ATE300P Probe lead out temperature sensor | Wireless frequency | 433/470MHz |
| Communication distance | 500m in open area |
| Sampling frequency | 25s |
| Transmitting frequency | 25s-5min adaptive |
| Power source | Battery |
| Installation | Rail type/Tie type |
| Range of temperature | -50℃~+300℃ |
| Precision | ±1℃ |
| Battery life | ≥5 years(25℃) |
| Protection level | IP65 |
Switchgear temperature sensors

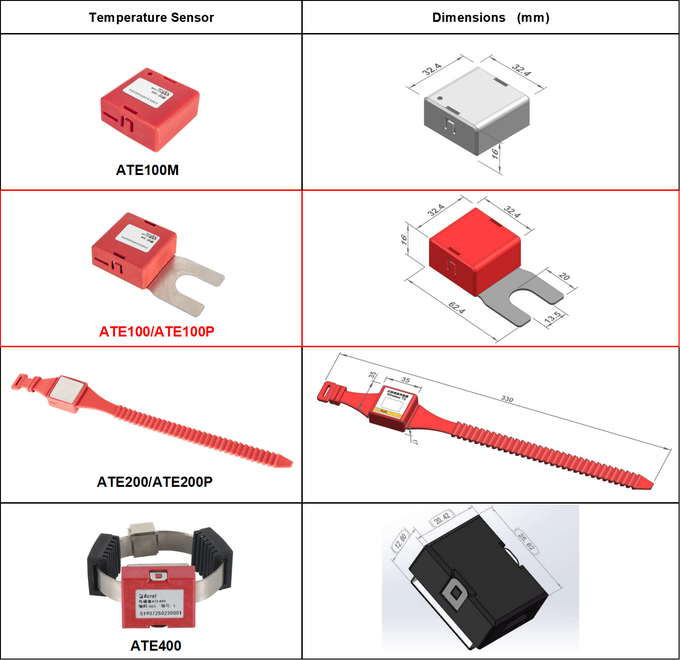

Dimensions of different wireless temperature sensors
Installation in cabinets 35kv and below
Network of remote covntrol of distribution systems
